Sprinkler fire extinguishing systems are installed in public places – hotels, shopping malls, cinemas, factories. They are used to control and extinguish fires with a stream of water when signs of fire are detected.

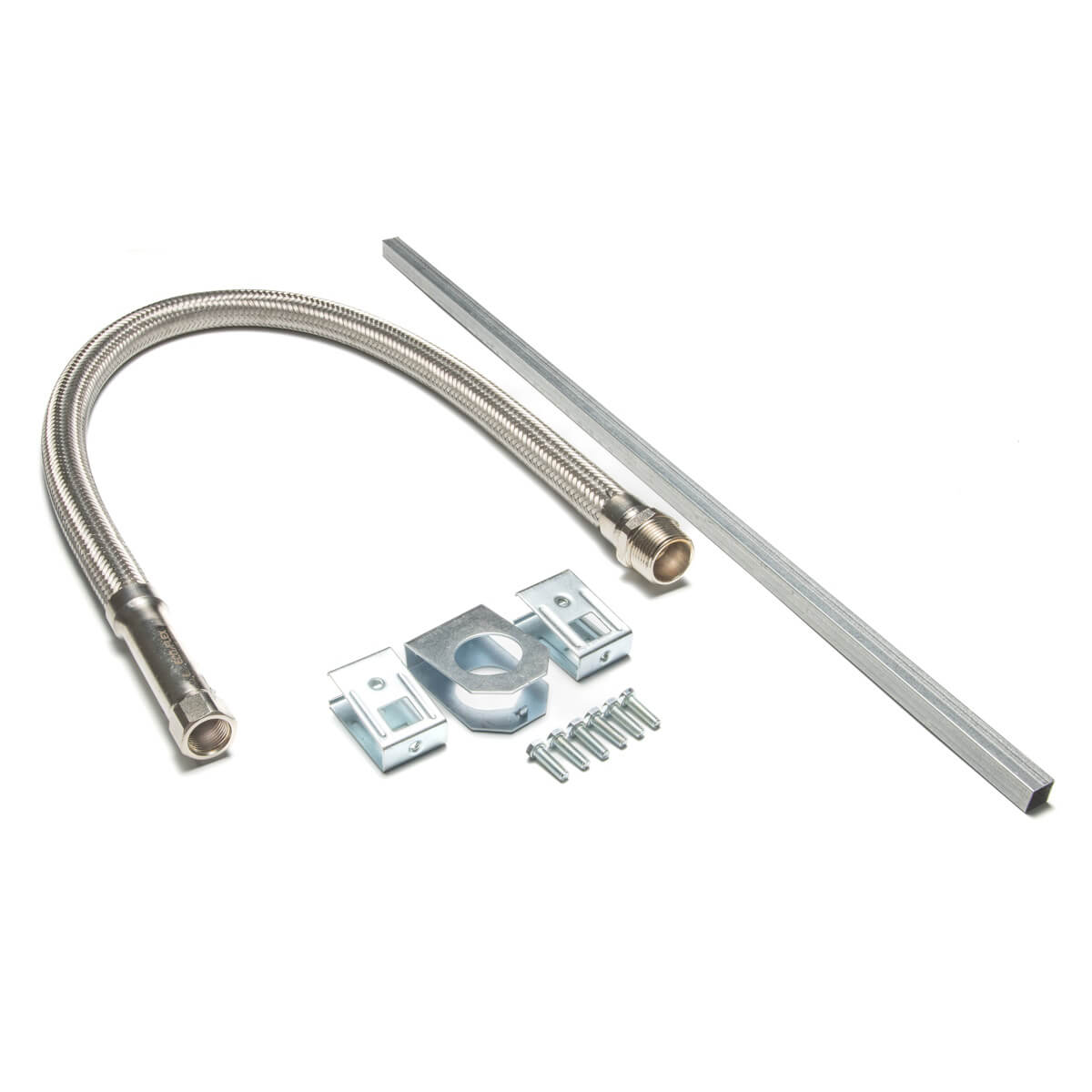

This kit provides a reliable and safe connection of sprinklers to the water supply, preventing leakage and ensuring the effective operation of the fire extinguishing system.

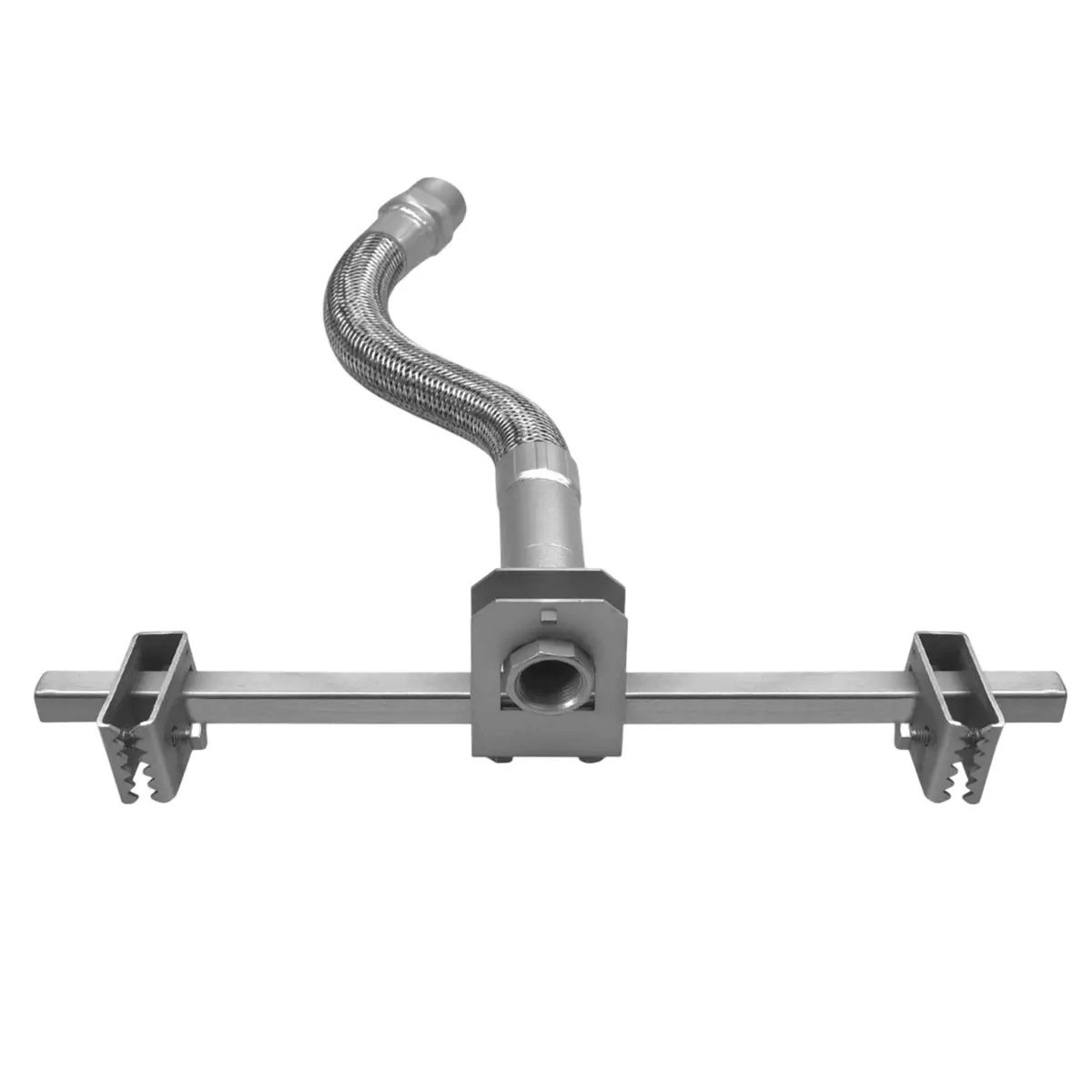

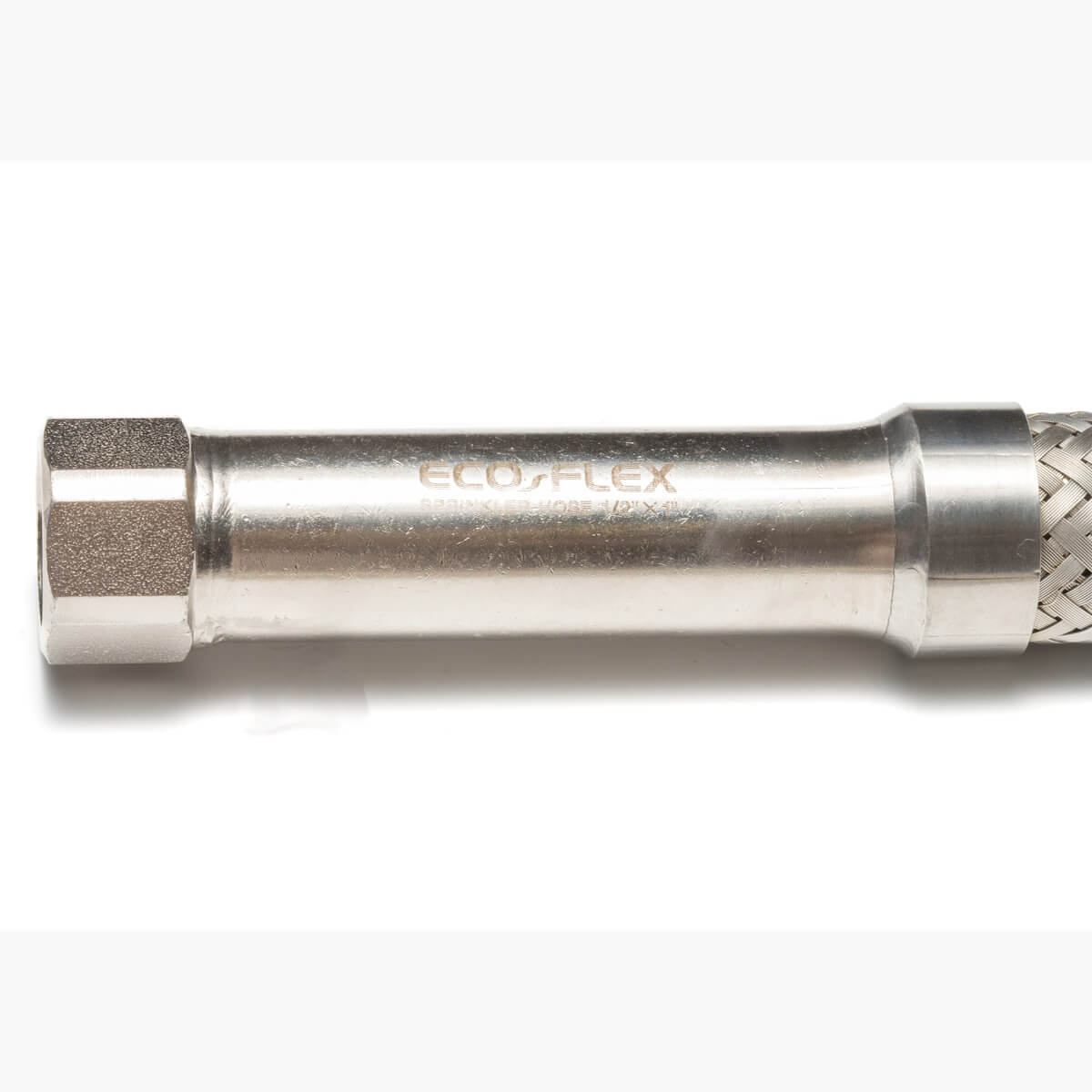

Features of the Eco-Flex metal hose-based sprinkler fire extinguishing system:
- The hose connects the sprinkler to the fire water supply system.
- Easy and quick to install, requires minimal installation costs.
- The system has a long service life.
- Resistant to high temperatures and pressure.
- The braid prevents stretching and makes the hose resistant to deformation.
Technical specifications
| DN | Braid | Connection | Pressure, bar | Temperature, °C | Length, cm | Materials |
|---|---|---|---|---|---|---|
| 20 | none | Internal thread 1/2″ – External thread 1″ | 10 | up to +650 | 60, 80, 100, 120, 150, 200 | Metal hose: stainless steel AISI 304. Braid: stainless steel. Fittings: carbon steel with nickel coating, stainless steel. |
| 20 | is | Internal thread 1/2″ – External thread 1″ | 62 | up to +650 | 60, 80, 100, 120, 150, 200 | Metal hose: stainless steel AISI 304. Braid: stainless steel. Fittings: carbon steel with nickel plating, stainless steel. |
