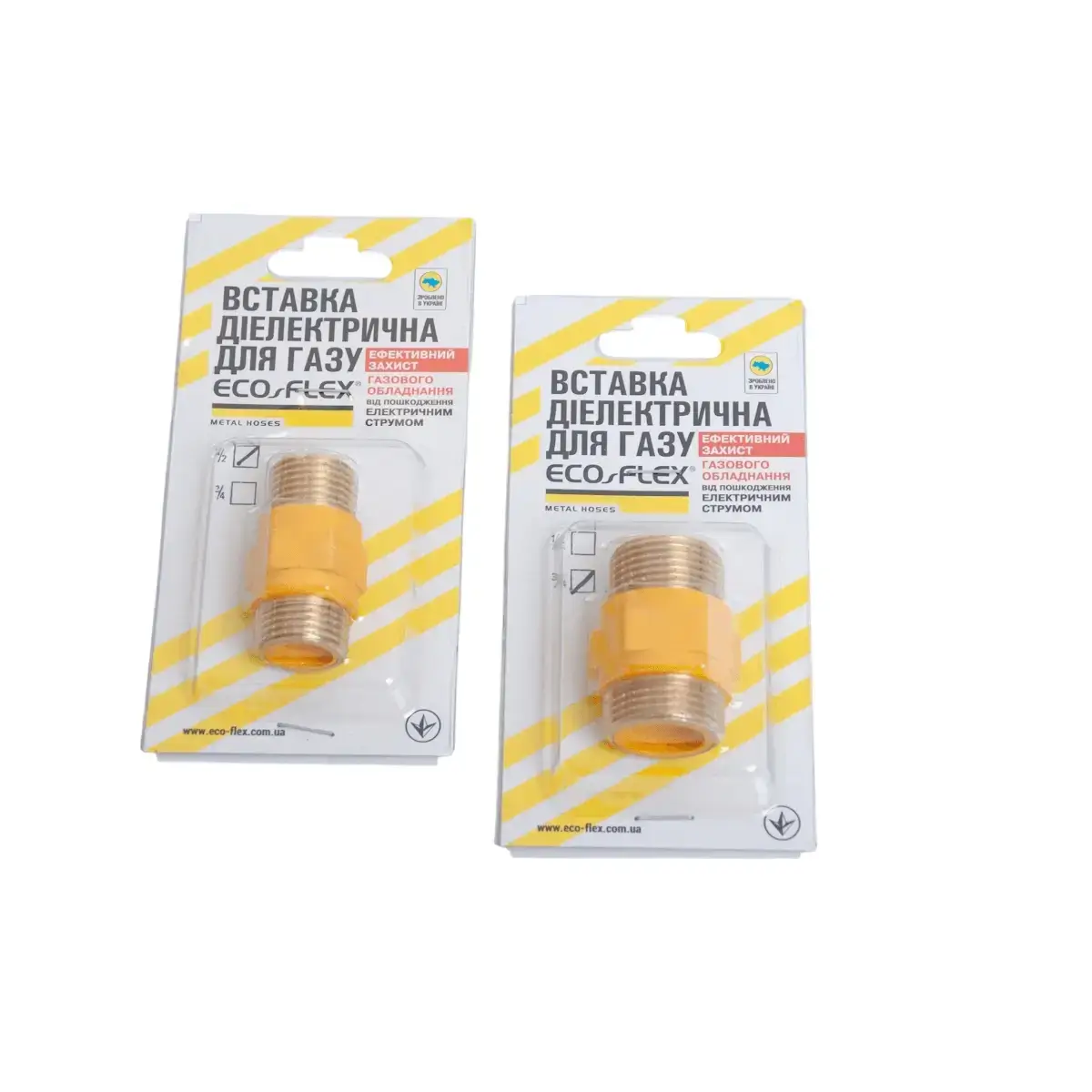

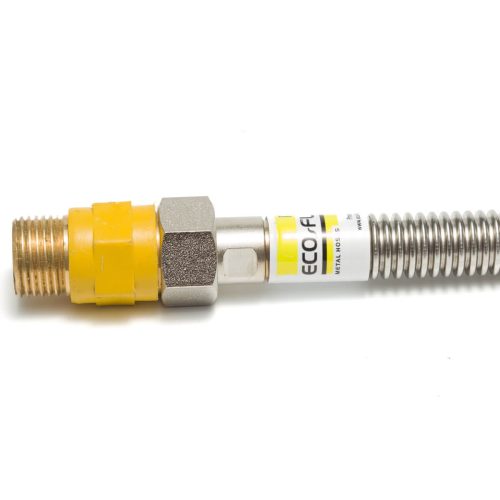

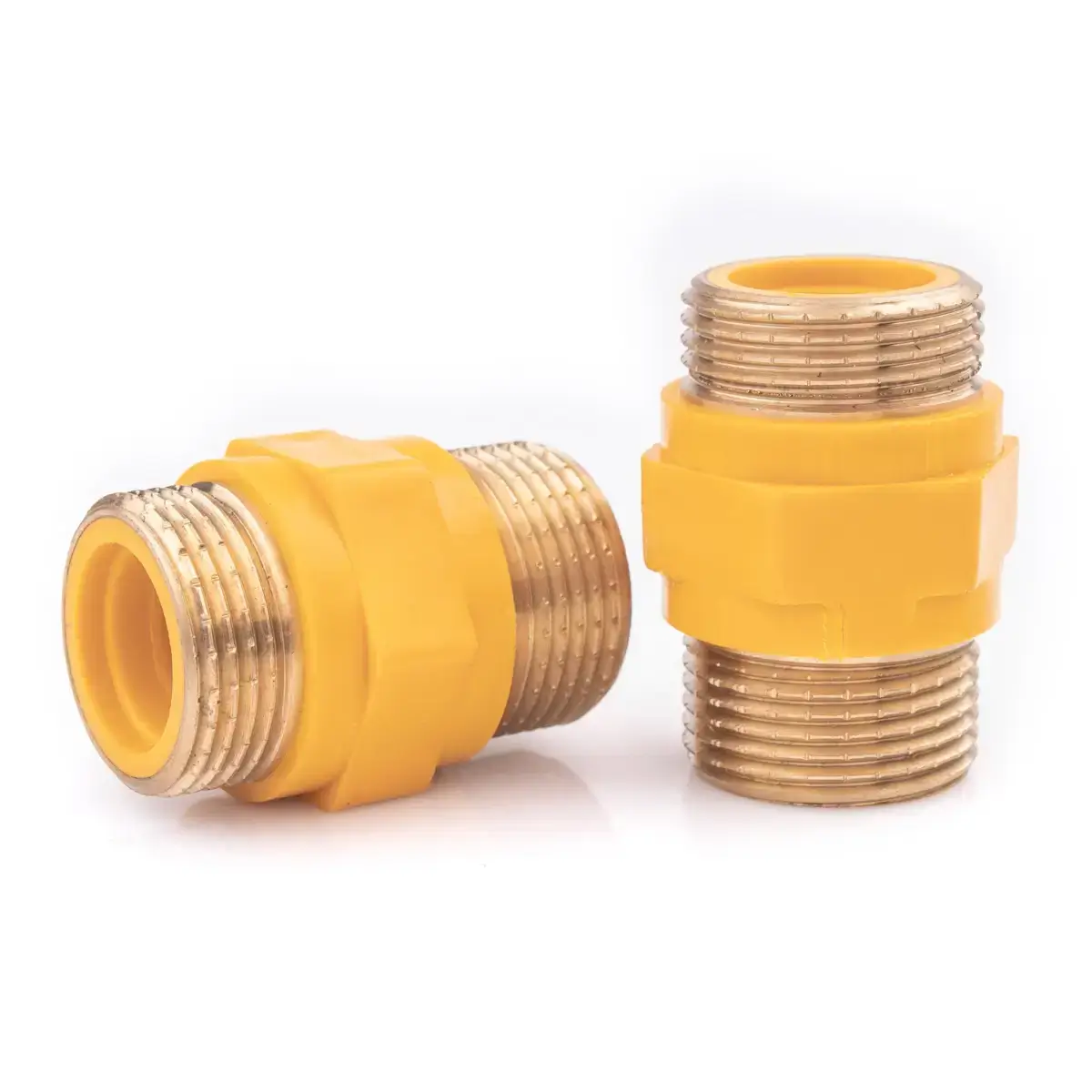

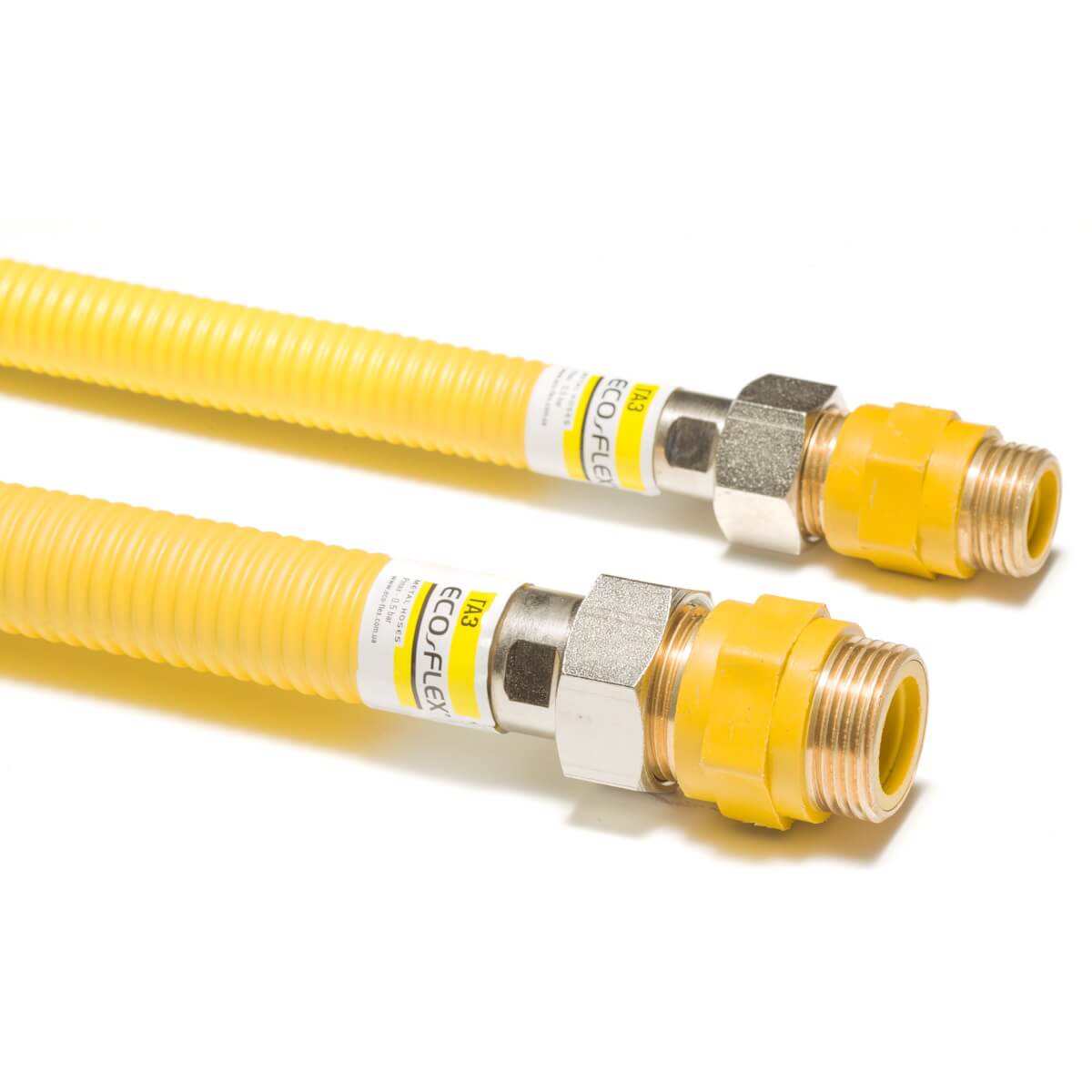

Dielectric Insert
Non-detachable insulating connection, designed to protect gas appliances from stray currents. Installed between the gas valve and the connection.
- nominal diameter Dn15;
- internal passage diameter 10 mm;
- electrical resistance at 1000V – 5 Mohm;
- working temperature -20/+80 ºC;
| DN | FITTINGS | PRESSURE, bar | LENGTH, cm |
|---|---|---|---|
| 12 | 1/2″ Nipple-1/2″ Nipple | 0.5 | 4.5 |
| 16 | 3/4″ Nipple-3/4″ Nipple | 0.5 | 4.5 |
