Intensive heat exchange
High heat transfer coefficient
Diverse configuration
Manufacturing according to customer specifications

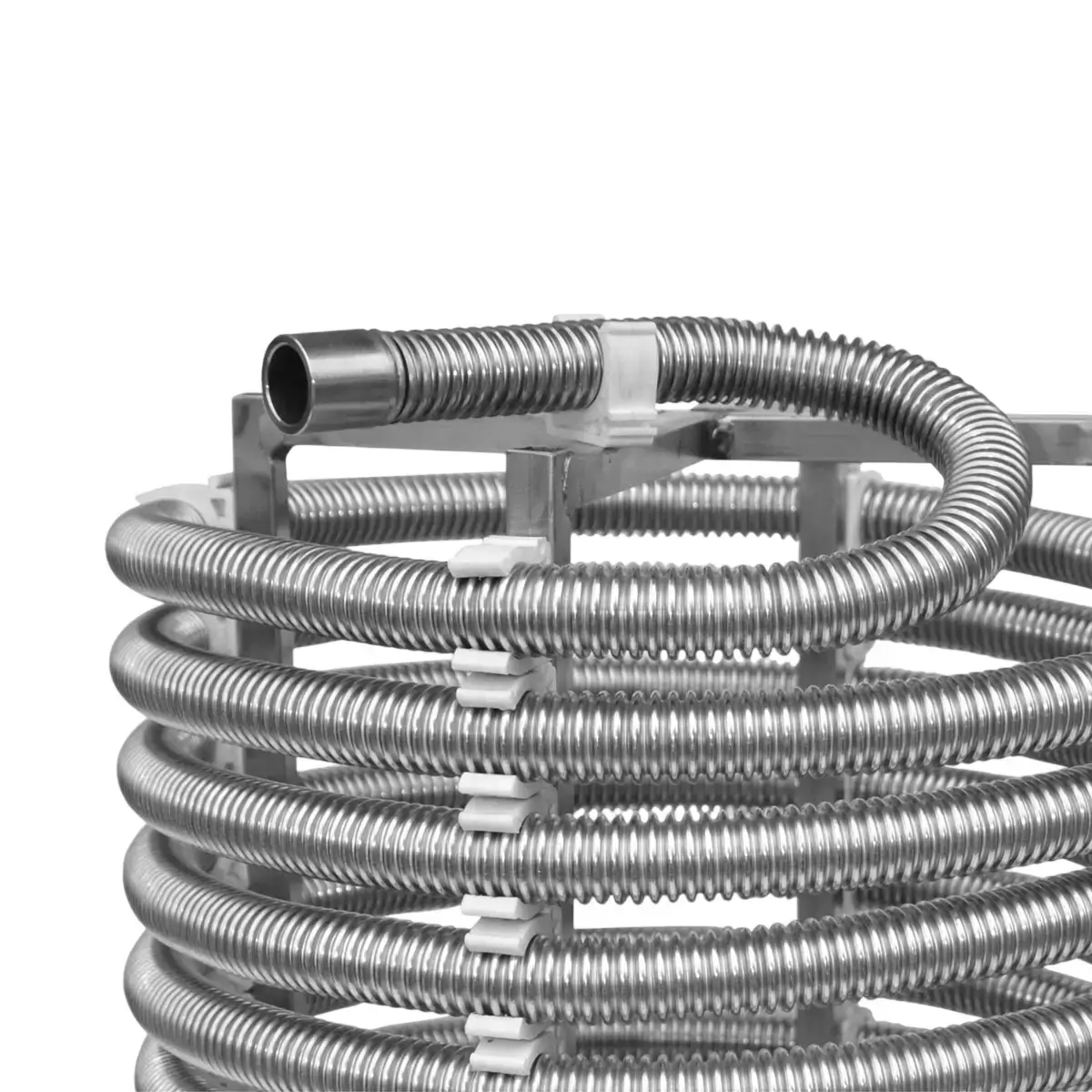

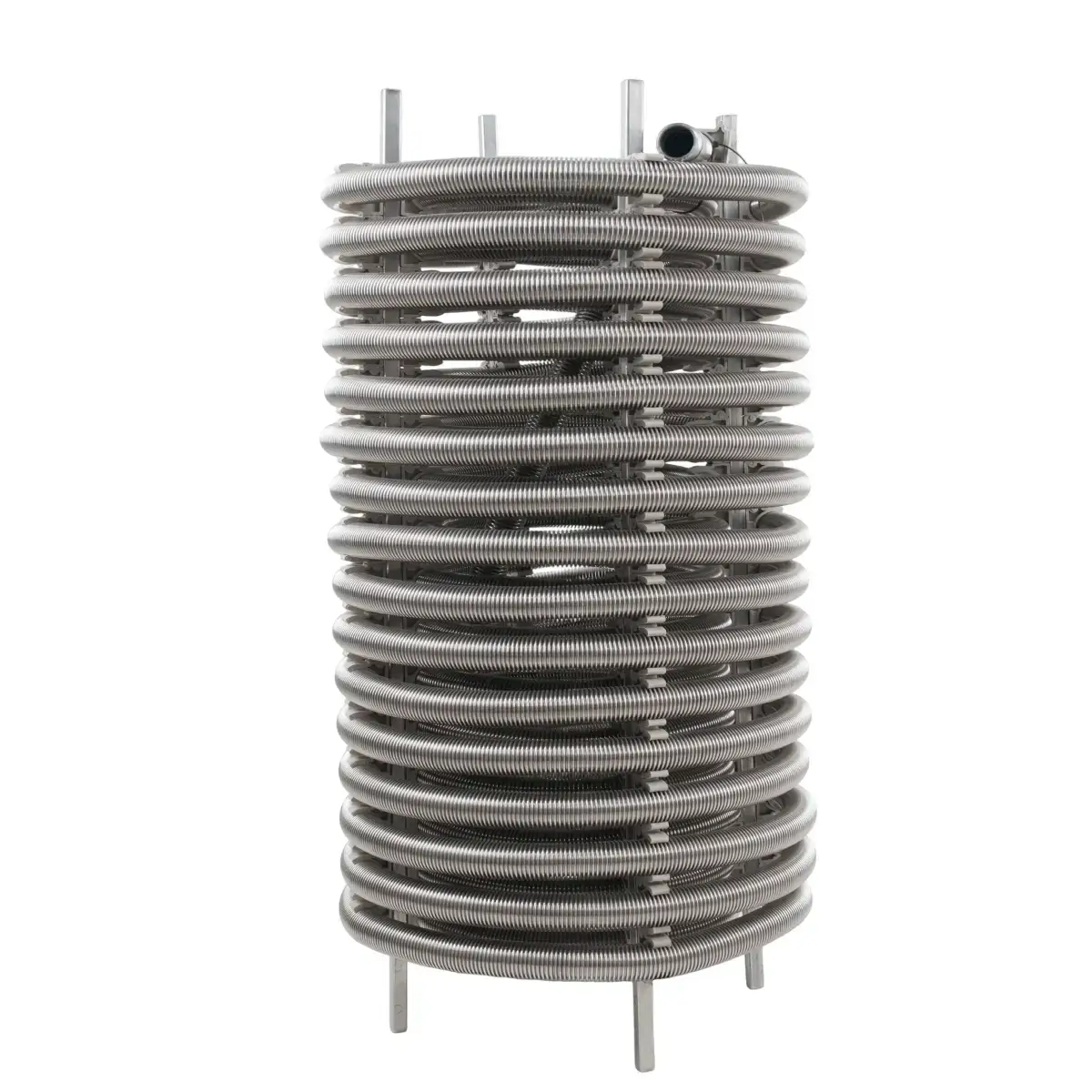

Eco-Flex heat exchangers, made on the basis of corrugated stainless steel metal hoses, are an efficient and compact solution for heating, hot water supply and cooling systems. Due to the flexible corrugated pipe design, the heat exchangers provide a high level of energy efficiency and reliability in conditions of variable temperatures and pressures.
Scope of application
- heat accumulator tanks;
- gas boilers (second hot water supply circuit);
- heating and cooling systems;
- solar systems and other energy-saving installations.
Main advantages
- Intensive heat exchange due to flow swirl and turbulent flow in the wall layer;
- Reduced dimensions while maintaining high power — due to the increased heat exchange area;
- High thermal conductivity due to the small wall thickness of the metal hose;
- Easy installation – does not require pipe bending equipment, which significantly reduces installation time and costs;
- Durability and corrosion resistance of stainless steel ensure stable operation for many years.
Eco-Flex heat exchangers – is a modern solution that combines high efficiency, compactness and ease of installation. Ideal for systems where reliability, energy efficiency and stable heat transfer are important.
We invite manufacturers of heat exchange equipment to cooperate.
Technical characteristics
| DN | Inner diameter, mm | Outer diameter, mm | Wall thickness, mm | Min. bending radius (static), mm | Working pressure at 20 °C, bar | PN according ISO 10380 | Liquid vollume ±5%, l/m | Surface area ±5%, m²/m |
|---|---|---|---|---|---|---|---|---|
| 25 | 26,1±0,4 | 31,6±0,4 | 0,20 | 35 | 8 | 6 | 0,653 | 0,135 |
| 25 | 25,5±0,4 | 31,7±0,4 | 0,30 | 40 | 12 | 10 | 0,628 | 0,142 |
| 32 | 34,1±0,5 | 40,4±0,5 | 0,22 | 45 | 4 | 2,5 | 1,120 | 0,185 |
| 32 | 34,0±0,5 | 40,2±0,5 | 0,30 | 47 | 10 | 10 | 1,070 | 0,168 |
