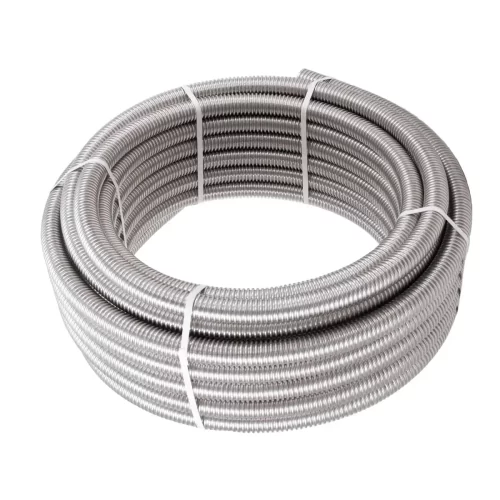

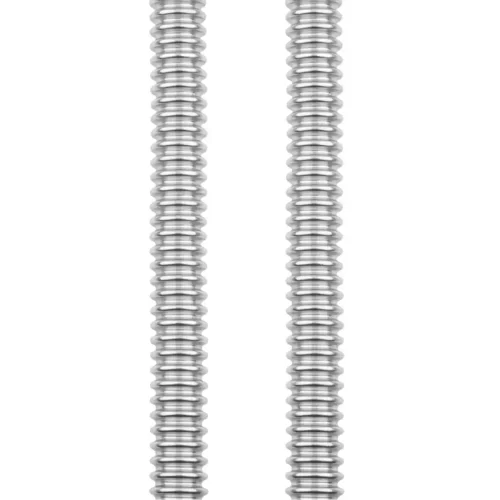

Stainless steel corrugated metal hose with open and standard corrugation pitch is an excellent choice for self-manufacturing and installation of hoses in heating, air conditioning, and water supply systems with individual connection sizes and lengths.
Advantages:
- Easy to bend without using special tools, which makes it easy to adapt it to the desired shape.
- No need for welding work at the site.
- Resistance to defrosting of the system.
- High resistance to water hammer, which makes it reliable in demanding operating conditions.
For the independent manufacture of metal hose products, you also need:
- Profi system assembly tool kit for independent forming of metal hose ends for fittings;
- Quick-lock coupling for forming threaded ends without using special tools and welding or Fittings for forming threaded ends using an assembly tool kit.
All these products are available for order in our company.
Using Eco-Flex fittings, a reliable and airtight connection is ensured.
The ability to manufacture non-standard lengths makes metal hoses a universal solution for various installation tasks.
Technical specifications
| DN | Fittings | Pressure, bar | Materials |
|---|---|---|---|
| 12 | 1/2″ | 18 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
| 16 | 3/4″ | 16 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
| 20 | 1″ | 13 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
| 25 | 1 1/4″ | 12 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
| 32 | 1 1/2″ | 4 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
| 40 | 2″ | 3,5 | Stainless steel AISI 304 або AISI 316L, other brands available upon request. |
