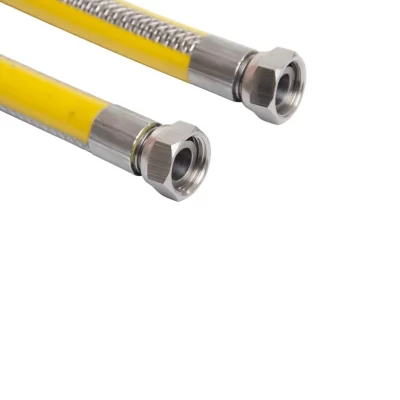

Designed as a hose that matches safety requirements according to EN 14800-2007, and is authorized to be used in all European Union (EU) countries.
Application area
Connection gas to domestic appliances where absolute safety is obligatory. It is used to connect gas columns, domestic and industrial stoves, boilers, cooking surfaces.
Advantages:
- High flexibility;
- Additional PVC cover as protection from environmental and external influence;
- Extremely damage resistant;
- Safety;
- Long working life.
To protect the gas network from stray currents, we recommend using a dielectric insert.
Technical specifications
| DN | Connection | Fittings | Length, m | Working pressure, bar | Working temperature, °C | Materials |
|---|---|---|---|---|---|---|
| 12 | 1/2″ | Nut-Nut | 0.5; 0.75; 1; 1.25; 1.5; 2 | 0.5 | -20 … +80 | Metal hose: stainless steel AISI 316 L. Braid: stainless steel AISI 304. Insulation: PVC with fire-retardant properties. Fittings: adapter, union: stainless steel; nut: nickel-plated brass. Gaskets: biconite. |
