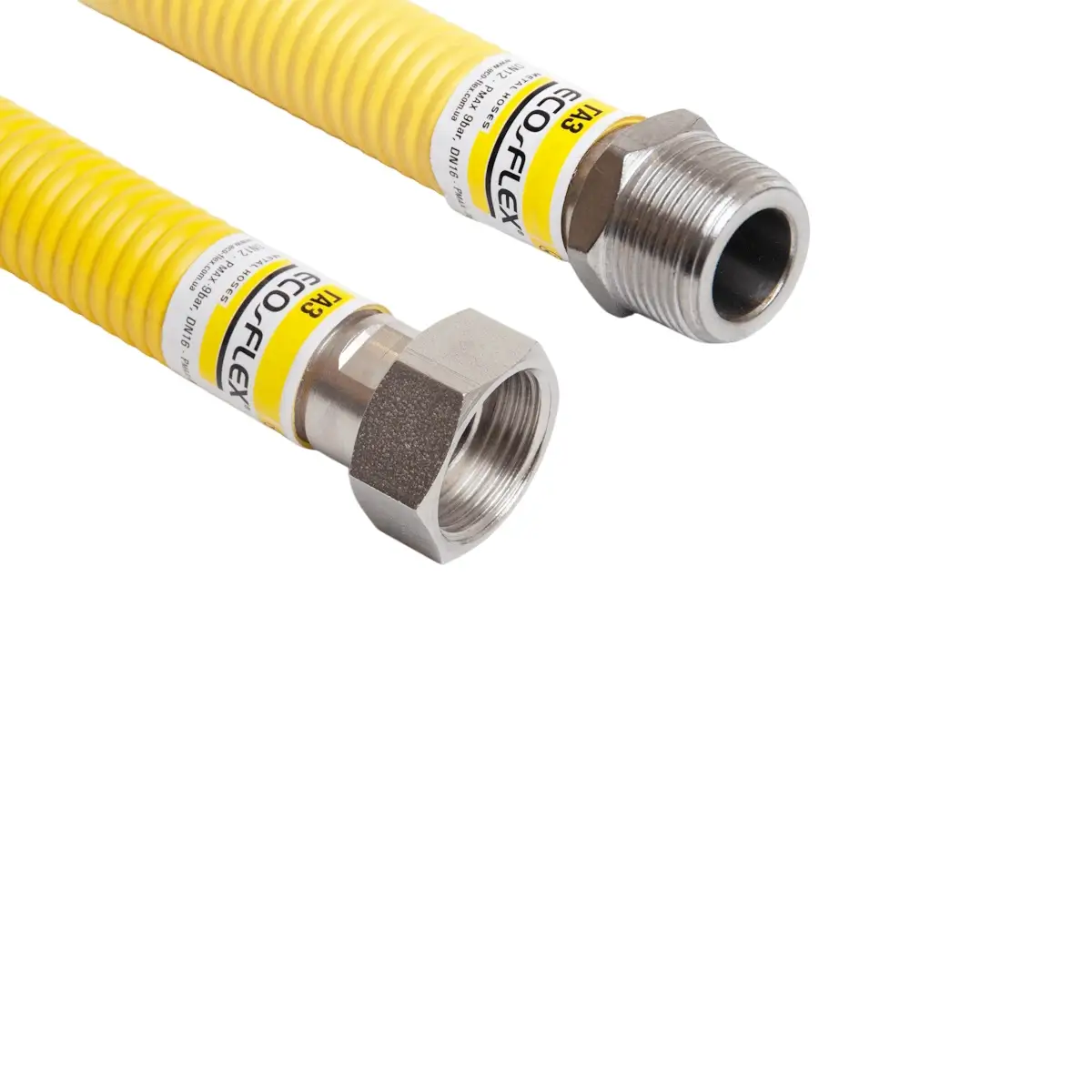

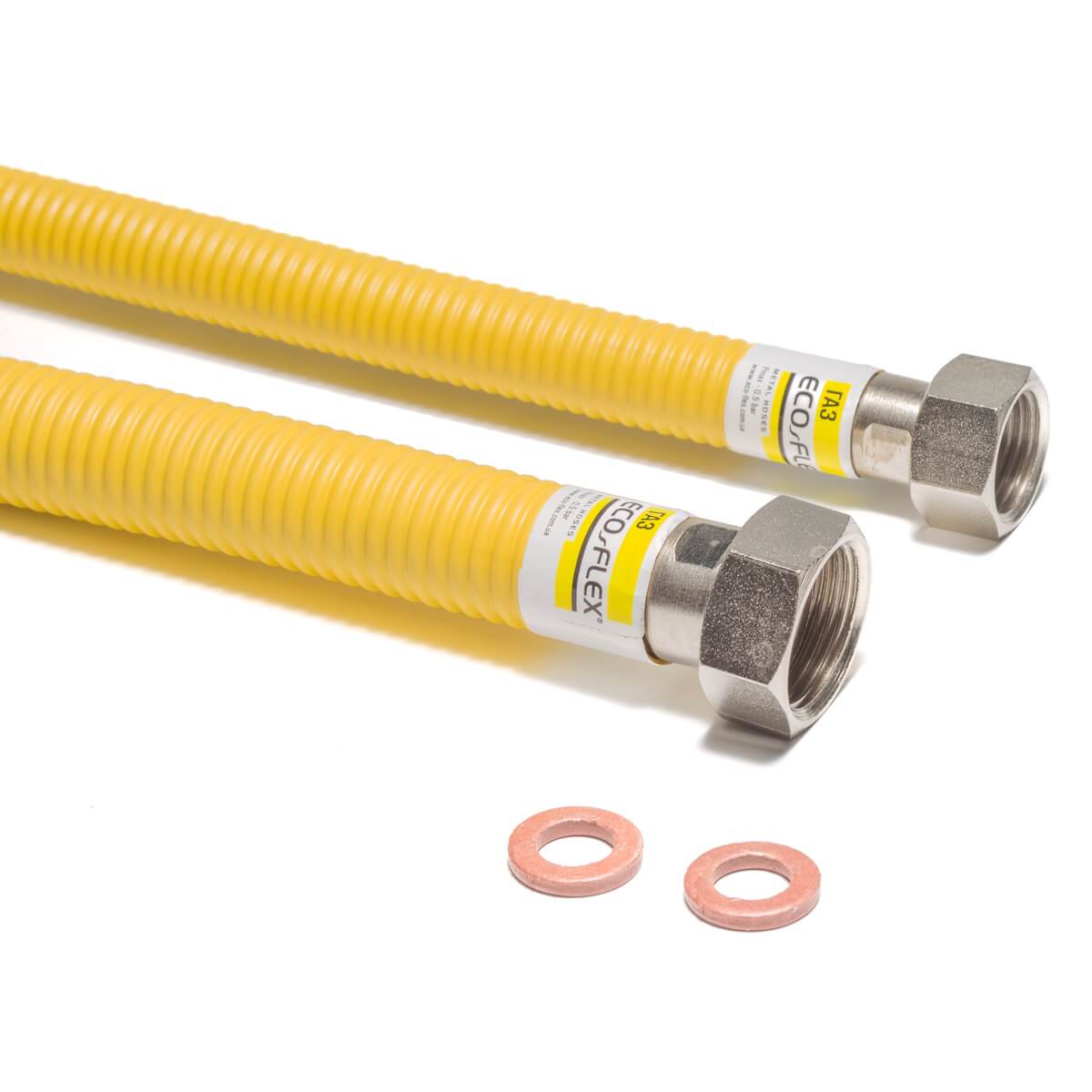

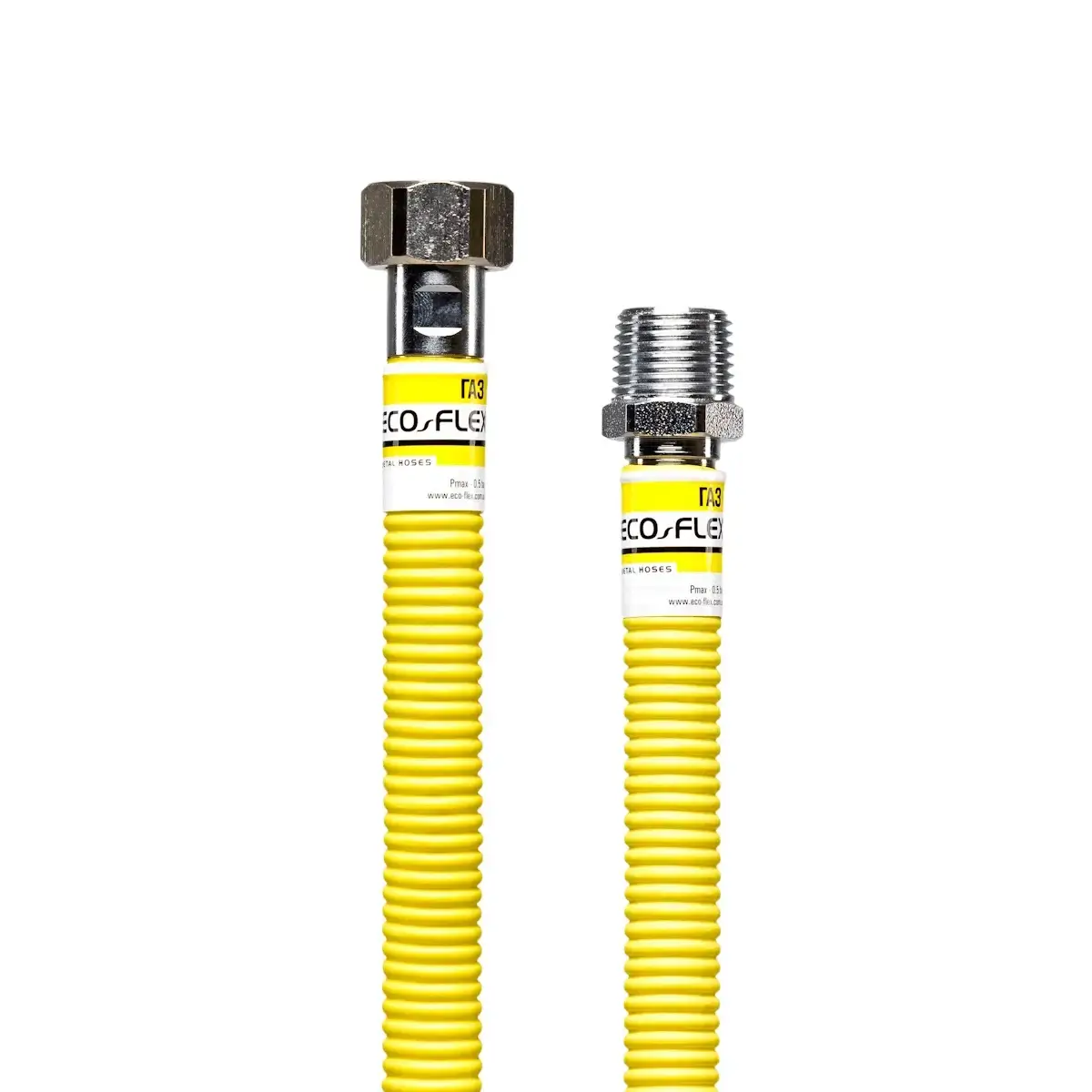

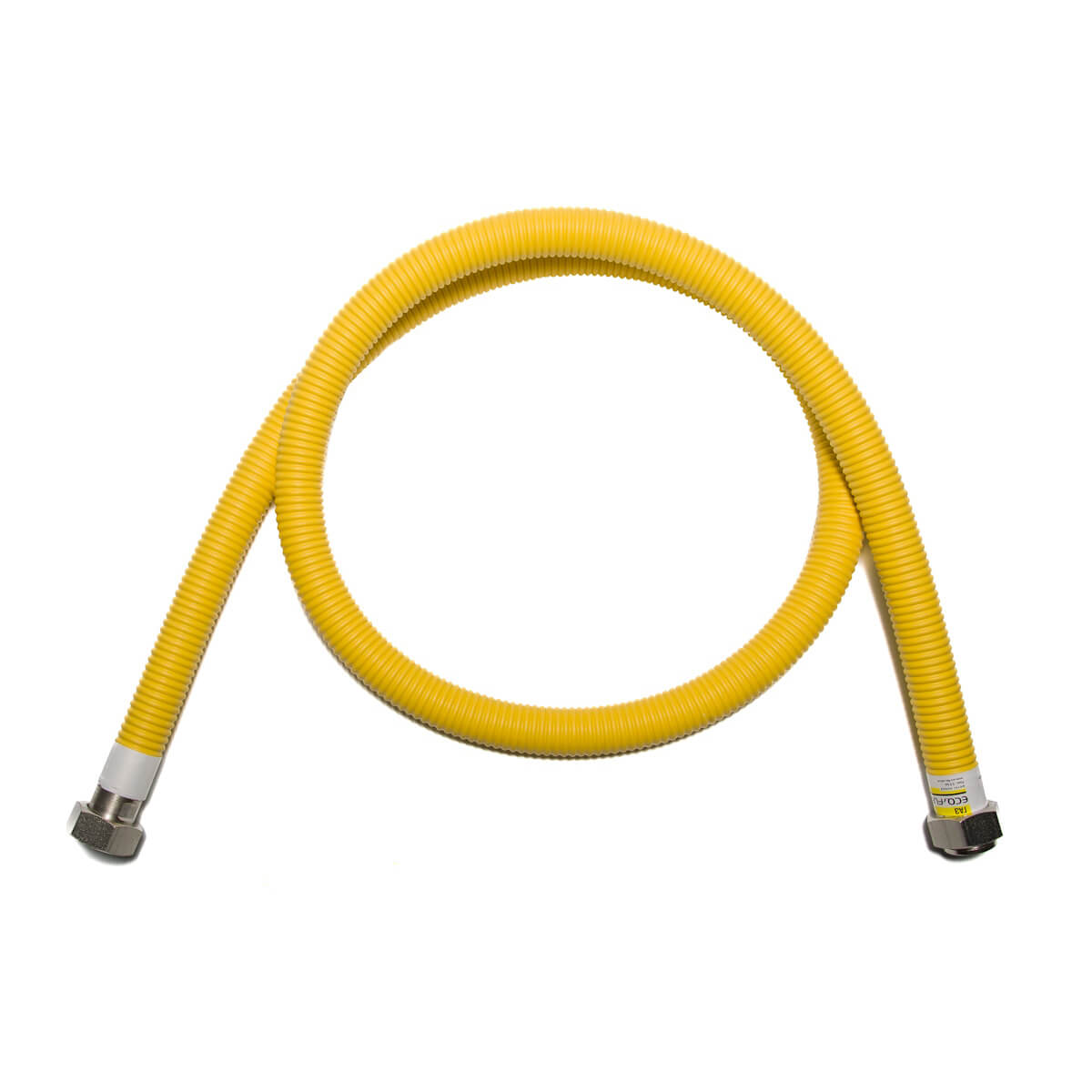

Eco-Flex Gas Super gas hose – the perfect solution for reliable and safe connection of gas equipment! It is designed taking into account all safety standards, combining the exceptional strength of metal and additional protection of polymer.
Purpose
The hose can be used to connect gas stoves, ovens, boilers, water heaters and other gas equipment.
Reliability
The inner corrugated layer of stainless steel provides the highest resistance to corrosion and mechanical damage, guaranteeing durability and stability of gas supply. This is critically important for the safe operation of gas appliances.
Aesthetics and protection
Bright yellow PVC coating not only improves aesthetics – it is a generally accepted standard for marking gas hoses. It provides additional protection against abrasion, moisture, ultraviolet radiation and aggressive substances, and also makes the hose easily recognizable among other communications during installation or maintenance.
Flexibility and ease of installation
The corrugated structure of the hose gives it exceptional flexibility, which greatly simplifies the installation and connection of gas stoves, boilers, columns and other equipment even in limited space.
Safety and durability
Made of high-quality materials, this hose is resistant to temperature and pressure changes, which is the key to the safe and uninterrupted operation of your gas system for many years.
Compliance with standards
The Eco-Flex Gas Super gas hose is made in accordance with the international standard ISO 10380:2012 «Pipework – Corrugated metal hoses and hose assemblies», which confirms its reliability and suitability for use.
By choosing the Eco-Flex Gas Super hose for gas equipment, you are investing in your peace of mind and reliability for many years to come!
To protect the gas network from stray currents, we recommend using a dielectric insert.
Technical specifications
DN | Connection | Fittings | Length, cm | Working pressure, bar | Working temperature, °C | Materials |
---|---|---|---|---|---|---|
12 | 1/2″ | Nut-Nut, Nut-Shutter | 30-250 | 0.5 | -50 … +70 | Metal hose: stainless steel AISI 304. Fittings: carbon steel ST37 with nickel coating. Gaskets: biconite. Coating: yellow PVC. |
16 | 3/4″ | Nut-Nut, Nut-Shutter | 30-250 | 0.5 | -50 … +70 | Metal hose: stainless steel AISI 304. Fittings: carbon steel ST37 with nickel coating. Gaskets: biconite. Coating: yellow PVC. |
